vacuum gauges

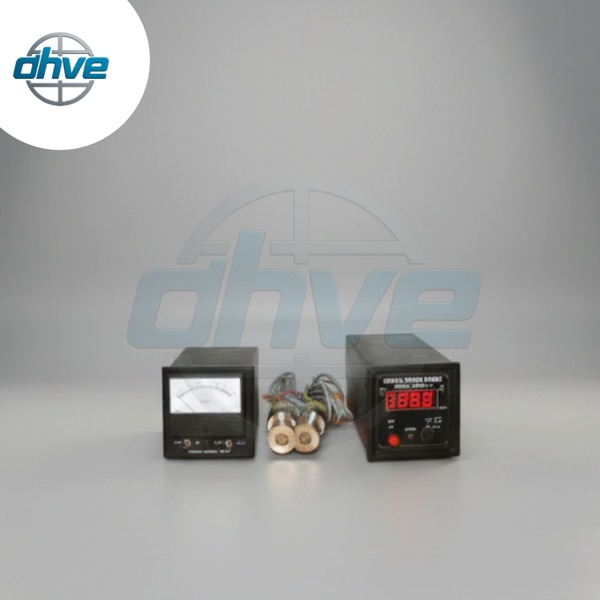

For accurate measurement of pressure in the rough to high vacuum range 10^{-3} to 10^1 mbar), the Pirani Gauge is an industry standard. This thermal conductivity gauge provides reliable, cost-effective, and robust pressure monitoring, making it indispensable for controlling vacuum processes and protecting high vacuum equipment. Dinesh High Vacuum Engineering (DHVE) supplies a versatile range of Pirani Gauges, offering both the simplicity and durability of Analog units and the high precision and integration features of Digital sensors, ensuring you have the right monitoring tool for every application. I. ⚙️ The Pirani Principle: Measuring Pressure via Thermal Conductivity The Pirani Gauge operates based on the principle that the thermal conductivity of gas changes proportionally with its pressure in the rough to medium vacuum range. How It Works Heated Filament: A fine metal filament (often made of platinum or tungsten) is suspended within a sensor cell exposed to the vacuum environment. Constant Heating: An electrical current is passed through the filament, heating it to a temperature significantly higher than the ambient temperature. Heat Loss: Heat is lost from the filament primarily through two mechanisms: Radiation: This heat loss to the chamber walls is relatively constant. Thermal Conduction: This heat loss to the surrounding gas molecules is pressure dependent. Pressure Measurement: As the pressure decreases (i.e., the vacuum improves), fewer gas molecules are present to carry heat away from the filament. This causes the filament's temperature to increase, which, in turn, causes its electrical resistance to increase. The gauge circuitry measures this change in resistance and converts it into a pressure reading. Note: Pirani gauges are gas-type dependent. The reading is accurate for the calibration gas (usually Nitrogen or Air). If measuring other gases (e.g., Helium, Argon), conversion factors must be applied, as each gas has a unique thermal conductivity. II. 📊 The Legacy: Analog Pirani Gauges (DHVE Classic Series) Analog Pirani Gauges are known for their simplicity, reliability, and cost-effectiveness. They utilize basic bridge circuitry and rely on a physical meter movement to display the pressure. They are often chosen for applications where a simple, quick visual confirmation of vacuum status is required. Key Features of DHVE Analog Pirani Gauges: Simple, Durable Operation: They are highly reliable with minimal complex electronics, making them durable for continuous industrial use. Visual Indication: The needle movement on the meter provides an intuitive, quick check of vacuum status (e.g., 'Good Vacuum' or 'Rough Vacuum'). Cost Efficiency: They offer the most economical entry point for accurate measurement in the 10^{-3} mbar range. Output: They typically provide a basic electrical output (often a 0-10V signal) proportional to the pressure, easily integrated with older control systems or simple relays. III. 💻 The Future: Digital Pirani Gauges (DHVE Smart Sensors) Digital Pirani Gauges integrate microcontrollers and sophisticated signal conditioning directly into the sensor head, offering greater precision, stability, and connectivity than their analog counterparts. They are essential for automated and data-intensive modern vacuum systems. Key Features of DHVE Digital Pirani Gauges: Enhanced Accuracy and Stability: Digital linearization and precise temperature compensation circuitry provide a highly stable and accurate reading across the entire measuring range. Microprocessor Control: Allows for advanced functions like automatic zero adjustment and endpoint calibration for increased precision and ease of use in the field. Digital Communication: Equipped with digital interfaces (e.g., RS-232, RS-485, or fieldbus protocols), enabling seamless integration into PLC-controlled systems, remote monitoring, and complex data logging. Integrated Display and Relays: Features integrated digital LED or LCD screens for direct pressure reading at the point of use. Many include internal set-point relays, enabling the gauge to automatically trigger system events (e.g., turning on a Turbomolecular Pump or opening a valve) when a specific pressure threshold is reached. Combined Sensing (Optional): DHVE offers advanced digital units that combine the Pirani sensor with a thermal-coupled MEMS sensor for faster response and improved linearity near atmospheric pressure. IV. 🌍 Applications Across Industries Both analog and digital Pirani Gauges are essential for many processes monitored by Dinesh High Vacuum Engineering clients. The choice between them depends on the need for simple indication versus automation and data integration: Fore-Vacuum Monitoring: Monitoring the inlet pressure to a Turbomolecular Pump or Roots Blower is crucial to ensure the backing pump reaches the safe startup pressure, often best handled by the reliable switching of Digital gauges. Vacuum Furnace Control: Used to monitor pump-down progress in the rough and medium vacuum stages. Freeze Drying (Lyophilization): Digital gauges are preferred for precise monitoring and data logging of chamber pressure during the critical drying cycles to ensure product quality. General Lab Vacuum: Analog gauges offer a simple, visual, and cost-effective pressure check for rotary evaporators or desiccators, while Digital units are integrated into analytical instrumentation. PVD/CVD Coating Systems: Used to monitor pressure during gas-backfilling and process transitions in the medium vacuum range. Choose Precision and Reliability with DHVE Whether your operation requires the fundamental reliability of an Analog Pirani Gauge or the advanced integration and precision of a Digital Pirani Gauge, Dinesh High Vacuum Engineering (DHVE) provides quality, calibrated instruments engineered for accuracy and longevity. ➡️ Optimize your vacuum system control. Contact Dinesh High Vacuum Engineering today to select the ideal Pirani Gauge—Analog or Digital—for your pressure monitoring needs and system integration requirements!

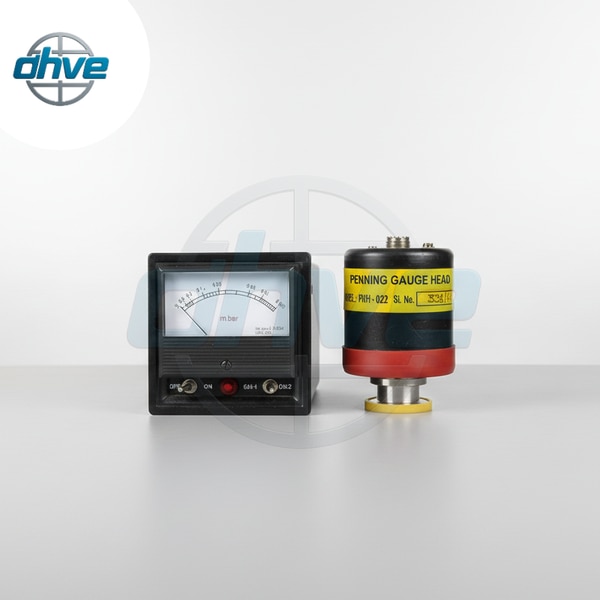

For rugged, reliable measurement in the high vacuum to ultra-high vacuum range (typically 10^{-2} to 10^{-9} mbar), the Analog Penning Gauge (also known as a Cold Cathode Gauge) is the industry's preferred workhorse. Unlike hot-cathode gauges that use delicate filaments, the Penning gauge is robust, resistant to sudden pressure bursts, and ideal for harsh industrial environments. Dinesh High Vacuum Engineering (DHVE) supplies high-quality Analog Penning Gauges designed to provide operators with immediate, clear visual feedback on deep vacuum levels without the complexity or fragility of other high-vacuum sensors. I. ⚙️ Principle of Operation: The Cold Cathode Discharge The Penning Gauge measures pressure through gas ionization. However, unlike 'hot' gauges that boil electrons off a filament, the Penning gauge uses a high voltage and a magnetic field to create a self-sustaining discharge at low pressures. How It Works The Cell Structure: The gauge head contains two electrodes: an anode (usually a central ring or rod) and a cathode (plates or a cylinder connected to ground). High Voltage: A high DC voltage (typically 2 to 3 kilovolts) is applied between the anode and cathode. This electric field accelerates any free electrons present in the chamber. The Magnetic Trap: A strong permanent magnet surrounds the gauge tube. This magnetic field forces the electrons to travel in long, spiraling helical paths rather than going straight to the anode. Ionization: Because the electrons travel such a long distance, their probability of colliding with gas molecules increases dramatically. These collisions knock electrons off gas molecules, creating positive ions. Current Measurement: The positive ions are attracted to the cathode, creating an electrical current. This discharge current is directly proportional to the gas density (pressure). The analog meter measures this current and displays it as a pressure reading. II. 📊 Why Choose an Analog Penning Gauge? While digital sensors are common, the Analog Penning Gauge from DHVE offers specific advantages that keep it relevant and highly valued in heavy industry: Extreme Robustness (No Filament): The 'Cold Cathode' design means there is no hot filament to burn out. This makes the gauge incredibly durable and immune to failure from vibration or accidental exposure to atmospheric pressure (air inrush), which would instantly destroy a hot-cathode gauge. Instant Visual Trend Monitoring: The analog needle movement allows operators to see the rate of pump-down or pressure fluctuations at a glance, often faster and more intuitively than watching jumping digits on a screen. Cost-Effective High Vacuum Sensing: Penning gauges are generally more affordable than Bayard-Alpert (hot cathode) gauges while covering a similar high-vacuum range. Low Maintenance: The sensing head is simple and can often be disassembled and cleaned (sandblasted or polished) to remove contaminants, extending its life indefinitely. III. 🌍 Essential Applications for DHVE Penning Gauges The rugged nature of the Penning Gauge makes it the standard choice for industrial high-vacuum equipment where reliability is key: Vacuum Furnaces: Monitoring deep vacuum levels during sintering, brazing, and annealing processes where heat and vibration are present. PVD Coating Systems: Ensuring the chamber reaches the base pressure (e.g., 10^{-5} or 10^{-6} mbar) before the coating process begins. Particle Accelerators & Physics: Providing reliable monitoring of beamlines and large vacuum vessels. Electron Microscopy: often used as a robust interlocking gauge to protect the column. Leak Detection: Used as a durable sensor to indicate when a system is tight enough to switch to a leak detector. IV. Limitations to Consider While robust, DHVE advises customers to be aware of the specific characteristics of Penning technology: Starting Delay: At very low pressures (below 10^{-6} mbar), the discharge may take a few seconds (or minutes in extreme cases) to 'ignite' because there are so few gas molecules to start the ionization chain. Accuracy: They are generally less accurate (typically pm 30 to 50) than hot-cathode gauges, which is usually acceptable for industrial 'go/no-go' monitoring but less so for precision research. Cleaning: Over time, carbon deposits (from hydrocarbon vapors) can build up on the cathode, requiring periodic cleaning to maintain sensitivity. Durability Meets Depth with DHVE For industrial applications where you need to measure down to 10^{-9} mbar without worrying about burning out a sensor every time someone opens a valve too fast, the Analog Penning Gauge is the answer. Dinesh High Vacuum Engineering (DHVE) ensures you get a gauge built for the toughest environments. ➡️ Equip your high vacuum systems with the most durable sensor on the market. Contact Dinesh High Vacuum Engineering today for a quote on our Analog Penning Gauges!

For reliable and cost-effective monitoring of vacuum in the rough to medium range (10^1 to 10^{-3} mbar), the Analog Pirani Gauge remains an essential instrument in laboratories and industrial facilities. Known for its simplicity, clear visual display, and durability, the analog version is often preferred for applications where quick status checks and robust operation are more important than complex digital data logging. Dinesh High Vacuum Engineering (DHVE) supplies classic Analog Pirani Gauges, providing reliable thermal conductivity sensing in a straightforward, easy-to-read package. I. ⚙️ The Pirani Principle: Thermal Conductivity Sensing The function of the Pirani Gauge, regardless of whether it's analog or digital, relies on the physical principle that gas molecules transfer heat away from a heated surface proportional to their density (pressure) in the medium vacuum range. The Core Mechanism Heated Filament: An electrical current is passed through a fine metal filament (often platinum or tungsten) inside the gauge head, raising its temperature. Heat Loss and Resistance: As pressure decreases (i.e., the vacuum improves), fewer gas molecules are present to carry heat away from the filament via thermal conduction. This causes the filament's temperature to increase. Resistance-Pressure Relationship: This rise in temperature directly increases the filament's electrical resistance. The analog gauge circuitry—typically a Wheatstone bridge—measures this change in resistance. Analog Display: The circuit converts the resistance change into a voltage signal, which drives the needle on the physical meter. The needle deflection is calibrated to correspond directly to the pressure, giving an intuitive, continuous readout. Note: Like all thermal conductivity gauges, the reading is gas-type dependent. The displayed pressure is only truly accurate for the calibration gas (usually Nitrogen or Air). II. 📊 Advantages of the DHVE Analog Design The specific analog design offers powerful practical benefits for daily operation, making it the workhorse of the rough vacuum environment: Intuitive Visual Readout: The most significant advantage is the physical needle movement. Operators can instantly assess the rate of pump-down or pressure stability just by observing the needle's speed and position, which is excellent for spotting trends and immediate process feedback. Rugged Reliability: Analog circuitry and mechanical meters are inherently robust. They are less susceptible to electronic noise, software glitches, or rapid thermal changes compared to micro-processor-based digital units, making them highly reliable in tough industrial environments. Simplicity and Cost-Efficiency: The simple bridge circuitry and mechanical meter make the Analog Pirani Gauge the most economical and easy-to-service option for accurate pressure monitoring in its range. Continuous Monitoring: The meter provides a steady, real-time indication of pressure, allowing operators to make on-the-fly decisions about when to transition the system to the next pumping stage (e.g., turning on a Turbomolecular Pump). III. 🌍 Industrial Applications for DHVE Analog Gauges Analog Pirani Gauges from Dinesh High Vacuum Engineering are perfectly suited for applications that prioritize visual monitoring and rugged dependability: Initial Chamber Pump-Down: Monitoring the evacuation phase in vacuum furnaces, coaters, and large process vessels before deep vacuum equipment is engaged. Fore-Vacuum Interlock: Used as a simple, reliable sensor to confirm the fore-vacuum pressure is low enough to safely start a secondary high-vacuum pump. General Lab Vacuum: Providing simple, quick pressure checks on Schlenk lines, vacuum desiccators, and freeze dryers. Simple Automation: While analog, the output signal (typically 0-10V) is still easily used to drive simple relays for 'go/no-go' interlocking and status lights. Choose Visual Reliability with DHVE The Analog Pirani Gauge from Dinesh High Vacuum Engineering (DHVE) provides a classic, reliable, and cost-effective way to monitor and control your vacuum processes. It's the dependable choice for applications that value immediate visual status and robust operation. ➡️ Simplify your vacuum monitoring. Contact Dinesh High Vacuum Engineering today to equip your facility with our reliable Analog Pirani Gauges!

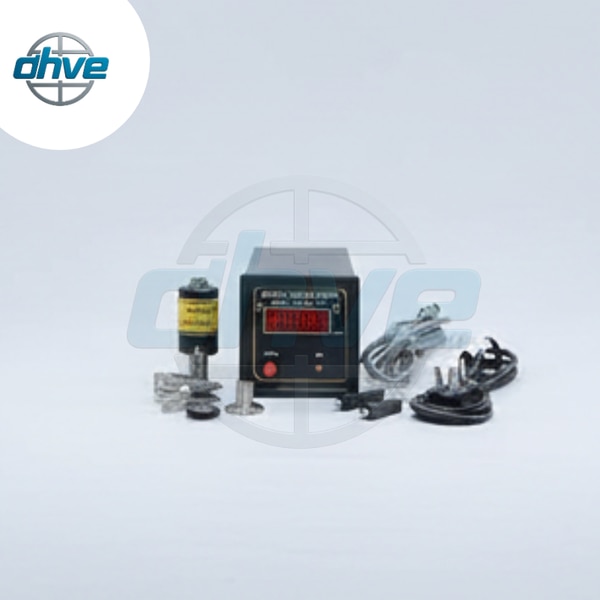

For modern vacuum systems requiring automated control, data logging, and high precision in the rough to medium vacuum range (999 to 10^{-3} mbar), the Digital Pirani Vacuum Gauge is the essential sensor. Unlike its analog counterpart, the digital Pirani integrates sophisticated electronics and microprocessors directly into the sensor head, providing enhanced stability, accuracy, and seamless integration into industrial control systems.1 Dinesh High Vacuum Engineering (DHVE) supplies advanced Digital Pirani Gauges, designed to meet the rigorous demands of automated industrial and laboratory processes. I. ⚙️ Principle & Digital Enhancement The fundamental principle of the Pirani Gauge—measuring pressure based on the thermal conductivity of the gas and the resulting change in the filament's electrical resistance—remains the same. However, the digital design enhances this measurement significantly: Microprocessor Integration: The sensor includes an embedded microcontroller that performs the complex functions of signal conditioning, linearization, and computation right at the source. Temperature Compensation: A key function of the digital circuitry is automatic temperature compensation. Since the filament's resistance is affected by ambient temperature changes, the microprocessor uses a secondary reference sensor to continuously correct the pressure reading, ensuring high accuracy and stability regardless of environmental fluctuations. Linearization: In the Pirani range, the relationship between pressure and resistance is inherently non-linear.4 The digital circuitry uses look-up tables or mathematical models to linearize the output signal, providing a smooth and highly accurate reading across the full range, especially at the transition point between rough and medium vacuum. II. 🌟 Key Advantages of DHVE Digital Pirani Gauges The integration of smart electronics provides several powerful operational benefits over traditional analog units: High Accuracy and Resolution: Due to advanced compensation and linearization, DHVE Digital Pirani Gauges offer superior measurement resolution and lower measurement uncertainty than standard analog devices. Seamless Digital Communication: Digital gauges are equipped with modern communication protocols (e.g., RS-232, RS-485, Modbus, or fieldbus) that allow for direct, noise-immune data transfer to PLCs, computers, and centralized control systems. This is vital for Industry 4.0 automation. Integrated Control Relays: Most digital units include built-in, user-configurable set-point relays.8 These relays can be programmed to automatically switch based on specific pressure thresholds (e.g., turning off the roughing pump or opening a high vacuum valve), simplifying system interlocks and safety mechanisms. Integrated Display: Many models feature a direct LED or LCD digital display on the sensor head, allowing local reading of the pressure value with high precision, complementing the remote electronic signal. Automatic Calibration: DHVE digital gauges often include features for automatic zero adjustment with the push of a button or via a remote command, simplifying maintenance and ensuring the gauge is always calibrated against a known reference. III. 🌍 Applications for Automated Vacuum Control The precision and connectivity of the Digital Pirani Gauge make it the preferred sensor for all automated and data-intensive vacuum processes: Automated Vacuum Coating (PVD/CVD): Precisely monitoring and controlling pressure during gas dosing and pump-down stages to ensure coating quality and batch consistency. Fore-Vacuum Interlocks: Providing the critical, highly reliable signal needed to safely switch on sensitive Turbomolecular Pumps or Roots Blowers when the required low base pressure is reached. Data-Intensive Research: Used in research facilities and universities for continuous, logged pressure data collection in experiments involving vacuum ovens, freeze dryers, and analytical instrumentation.10 Central Vacuum Systems: Monitoring and providing feedback for large, multi-user vacuum networks in manufacturing facilities or large research labs. Optimize Automation with DHVE Digital Sensors The Digital Pirani Vacuum Gauge from Dinesh High Vacuum Engineering (DHVE) is not just a sensor; it's a smart control component. It delivers the precision, stability, and connectivity required to optimize your pump-down times, protect your high-vacuum equipment, and fully automate your vacuum cycles. ➡️ Future-proof your vacuum system with advanced monitoring. Contact Dinesh High Vacuum Engineering today to integrate our high-precision Digital Pirani Gauges into your automated processes!
