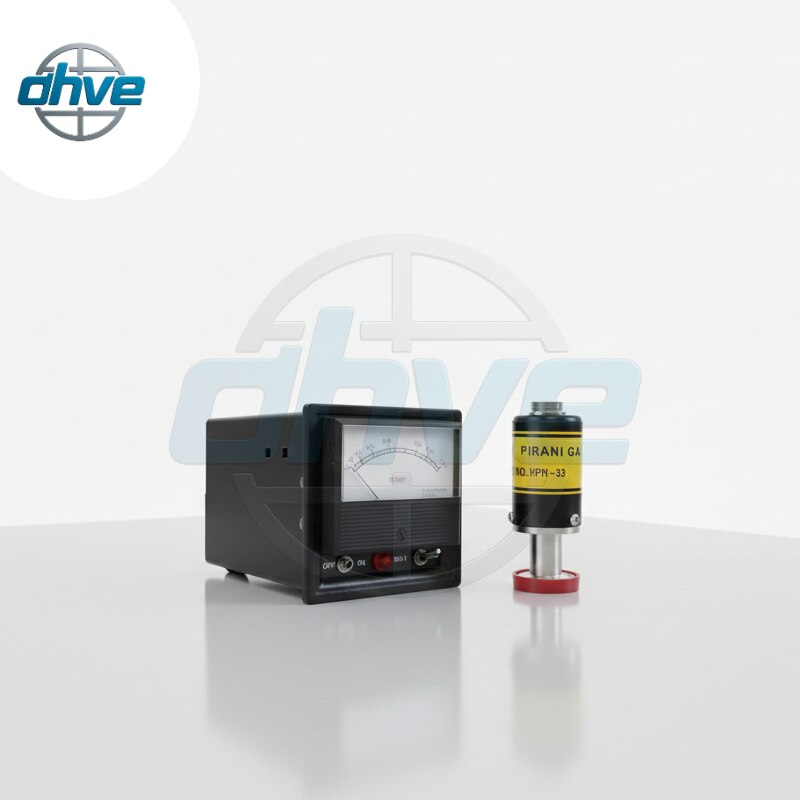

Analog Pirani Gauge

Description

For reliable and cost-effective monitoring of vacuum in the rough to medium range (10^1 to 10^{-3} mbar), the Analog Pirani Gauge remains an essential instrument in laboratories and industrial facilities. Known for its simplicity, clear visual display, and durability, the analog version is often preferred for applications where quick status checks and robust operation are more important than complex digital data logging. Dinesh High Vacuum Engineering (DHVE) supplies classic Analog Pirani Gauges, providing reliable thermal conductivity sensing in a straightforward, easy-to-read package. I. ⚙️ The Pirani Principle: Thermal Conductivity Sensing The function of the Pirani Gauge, regardless of whether it's analog or digital, relies on the physical principle that gas molecules transfer heat away from a heated surface proportional to their density (pressure) in the medium vacuum range. The Core Mechanism Heated Filament: An electrical current is passed through a fine metal filament (often platinum or tungsten) inside the gauge head, raising its temperature. Heat Loss and Resistance: As pressure decreases (i.e., the vacuum improves), fewer gas molecules are present to carry heat away from the filament via thermal conduction. This causes the filament's temperature to increase. Resistance-Pressure Relationship: This rise in temperature directly increases the filament's electrical resistance. The analog gauge circuitry—typically a Wheatstone bridge—measures this change in resistance. Analog Display: The circuit converts the resistance change into a voltage signal, which drives the needle on the physical meter. The needle deflection is calibrated to correspond directly to the pressure, giving an intuitive, continuous readout. Note: Like all thermal conductivity gauges, the reading is gas-type dependent. The displayed pressure is only truly accurate for the calibration gas (usually Nitrogen or Air). II. 📊 Advantages of the DHVE Analog Design The specific analog design offers powerful practical benefits for daily operation, making it the workhorse of the rough vacuum environment: Intuitive Visual Readout: The most significant advantage is the physical needle movement. Operators can instantly assess the rate of pump-down or pressure stability just by observing the needle's speed and position, which is excellent for spotting trends and immediate process feedback. Rugged Reliability: Analog circuitry and mechanical meters are inherently robust. They are less susceptible to electronic noise, software glitches, or rapid thermal changes compared to micro-processor-based digital units, making them highly reliable in tough industrial environments. Simplicity and Cost-Efficiency: The simple bridge circuitry and mechanical meter make the Analog Pirani Gauge the most economical and easy-to-service option for accurate pressure monitoring in its range. Continuous Monitoring: The meter provides a steady, real-time indication of pressure, allowing operators to make on-the-fly decisions about when to transition the system to the next pumping stage (e.g., turning on a Turbomolecular Pump). III. 🌍 Industrial Applications for DHVE Analog Gauges Analog Pirani Gauges from Dinesh High Vacuum Engineering are perfectly suited for applications that prioritize visual monitoring and rugged dependability: Initial Chamber Pump-Down: Monitoring the evacuation phase in vacuum furnaces, coaters, and large process vessels before deep vacuum equipment is engaged. Fore-Vacuum Interlock: Used as a simple, reliable sensor to confirm the fore-vacuum pressure is low enough to safely start a secondary high-vacuum pump. General Lab Vacuum: Providing simple, quick pressure checks on Schlenk lines, vacuum desiccators, and freeze dryers. Simple Automation: While analog, the output signal (typically 0-10V) is still easily used to drive simple relays for 'go/no-go' interlocking and status lights. Choose Visual Reliability with DHVE The Analog Pirani Gauge from Dinesh High Vacuum Engineering (DHVE) provides a classic, reliable, and cost-effective way to monitor and control your vacuum processes. It's the dependable choice for applications that value immediate visual status and robust operation. ➡️ Simplify your vacuum monitoring. Contact Dinesh High Vacuum Engineering today to equip your facility with our reliable Analog Pirani Gauges!
