Ultra Oil 19
Description

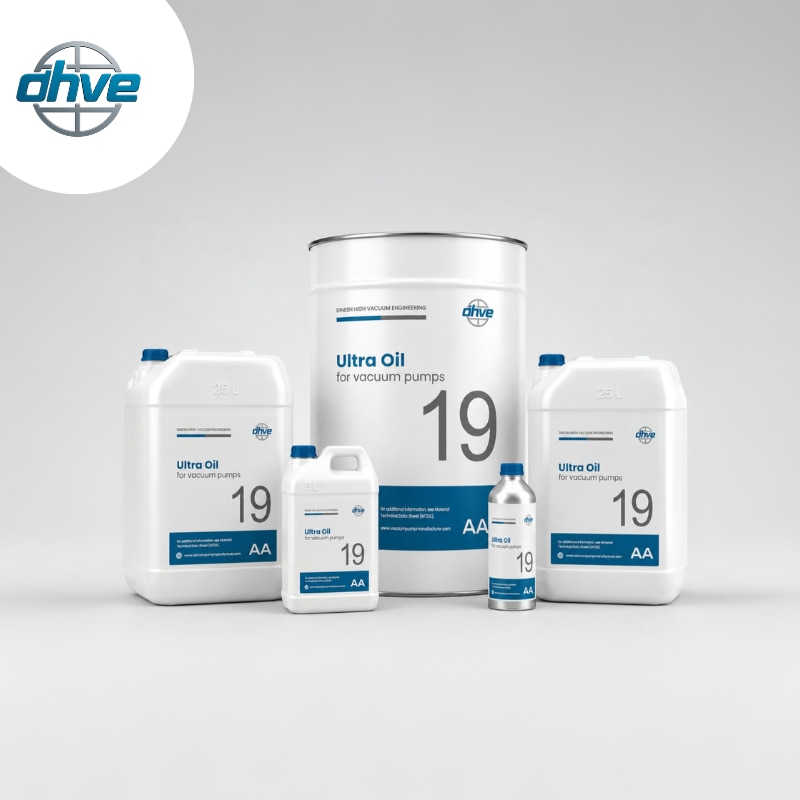

Dinesh High Vacuum Engineering Ultra Oil 19 (DUO 19) is a premium-grade, hydrotreated hydrocarbon vacuum pump oil engineered for small-to-medium two-stage rotary vane vacuum pumps. Specially formulated to serve as a direct, high-performance equivalent to Edwards Ultragrade 19, DUO 19 delivers identical viscosity profiles, exceptional thermal stability, and low backstreaming under demanding industrial and laboratory environments.
Unlike standard solvent-refined lubricants, DUO 19 undergoes a rigorous hydrotreating process. This severe molecular refining completely eliminates sulfur, nitrogen, oxygen, and aromatic ring structures, leaving a virtually transparent, chemically inert base stock. When combined with our advanced anti-oxidant, anti-wear, and rust-inhibiting additive package, DUO 19 enables your vacuum infrastructure to run cooler, pull deeper ultimate vacuums, and extend oil drain intervals by resisting chemical degradation.
🛡️Key Features & Technical Benefits
-- 100% Drop-In Edwards Ultragrade 19 Equivalent :- Seamlessly mix or switch during routine maintenance without flushing risks or seal compatibility issues.
-- Ultra-Low Vapor Pressure :- Minimizes backstreaming and oil degradation, allowing your vacuum pumps to reach their maximum engineered ultimate vacuum levels.
-- Optimized Cold-Start Lubrication :- Perfectly balanced viscosity profile reduces startup torque requirements, protecting internal mechanical components from dry friction wear during initial cold starts.
✅Core Applications & Compatibility
DUO 19 vacuum pump oil is precision-formulated for high-vacuum installations across analytical research, semiconductor manufacturing, and industrial operations.
1.) Compatible Pump :
Models :
Edwards Rotary Vane Pumps :- RV3, RV5, RV8, RV12, E2M18, E2M28 series.
Cross-Brand Compatibility :- Alcatel-Adixen C1 series, Pfeiffer DUO Line, Busch R5 series (less than 40m^3/hr), Leybold Trivac, and Rietschle V Series.
2.) Industry Applications:
- Mass Spectrometry & Electron Microscopy (SEM/TEM)
- Thin-Film Vacuum Sputtering & Optical Coating Systems
- Helium Leak Detection Operations
- Vacuum Metallurgy & Heat Treatment Furnaces
- UHV (Ultra-High Vacuum) System Backing Lines
Specifications
| Equivalent To | Edwards Ultragrade 19 / Leybold LVO 100 |
|---|---|
| Kinematic Viscosity at 40°C | 47 cSt |
| Vapor Pressure at 20°C | 1.3x^-8mbar |
| Kinematic Viscosity at 20°C | ~143 cSt |
| Sulphur Content | 0% |
| Vapor Pressure at 100°C | 1x10^-3 mbar |
| Flash Point | 240°C (464°F) |
| Pour Point | -15°C |
| Appearance | Clear |
