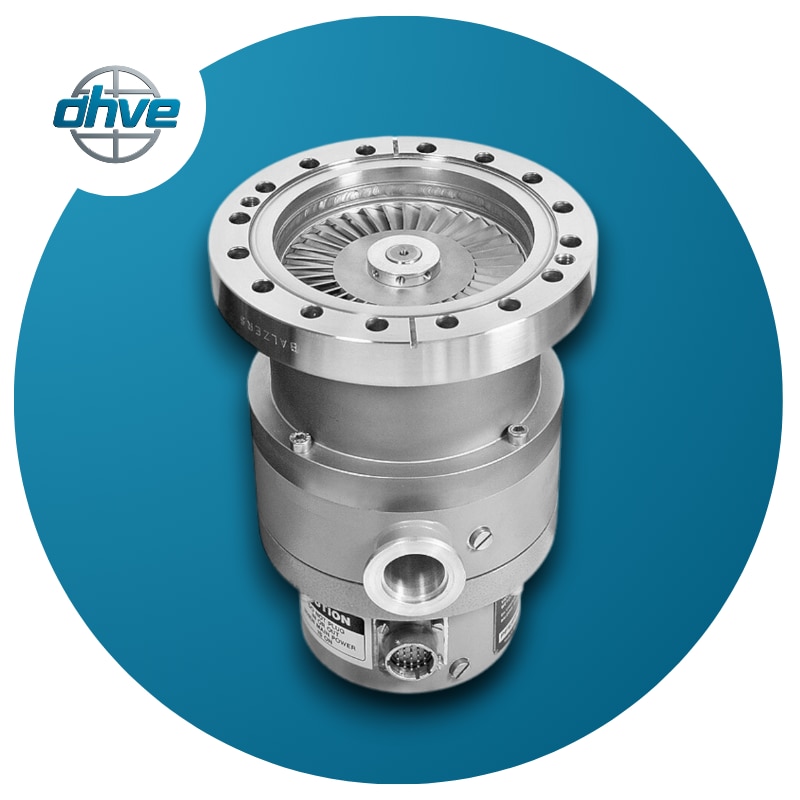

Turbo Molecular Pump
Description
Turbo Packages
Turbo Vacuum provides economical solutions for simple-to-purchase, small, complete turbo pump systems, ready to use. These packages include turbo pump, integrated controller, power supply, air cooling kit, and connection cables.
Features
• Economical solutions
• Reliable
• Ready to use & simple
• Dual voltage 90-240v
• Units Provided as Complete Package
TG60F
TG 60
Technical Specifications
Inlet Flange:
KF40, ISO 63, CF 63
Pumping Speed, L/S (N):
60
Pumping Speed, L/S (He)):
55
Pumping Speed, L/S (H):
22
Ultimate Pressure (mbar):
10-9
Startup Time (min):
1.5
Rotational Speed (rpm):
80,000
Orientation:
Any
Backing Pressure (mbar):
6
Outlet Flange:
NW 16
Weight (lb):
10
Controller:
TC66
Complete System Price:
$3,975.00
Ordering Information
TG60FKAB-OEM
TG60FRAB-OEM
TG60FCAB-OEM
TG240F
TG 240
Technical Specifications
Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
240
Pumping Speed, L/S (He)):
160
Pumping Speed, L/S (H):
N/A
Ultimate Pressure (mbar):
10-10
Startup Time (min):
5
Rotational Speed (rpm):
48,000
Orientation:
Any
Backing Pressure (mbar):
6
Outlet Flange:
NW 25
Weight (lb):
18
Controller:
TC245
Complete System Price:
$7,600.00
Ordering Information
TG240FRAB-OEM
TG240FCAB-OEM
TV90I
TV90i
Technical Specifications
Inlet Flange:
ISO 63, CF 63
Pumping Speed, L/S (N):
90
Pumping Speed, L/S (He)):
90
Pumping Speed, L/S (H):
78
Ultimate Pressure (mbar):
10-10
Startup Time (min):
1.5
Rotational Speed (rpm):
72,000
Orientation:
Any
Backing Pressure (mbar):
14
Outlet Flange:
NW 16
Weight (lb):
7
Controller:
Integrated
Complete System Price:
$4,850.00
Ordering Information
TV90I-SYS-ISO
TV90I-SYS-CF
TV250I
TV250i
Technical Specifications
Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
225
Pumping Speed, L/S (He)):
250
Pumping Speed, L/S (H):
210
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
72,000
Orientation:
Any
Backing Pressure (mbar):
14
Outlet Flange:
NW 16
Weight (lb):
13
Controller:
Integrated
Comp
