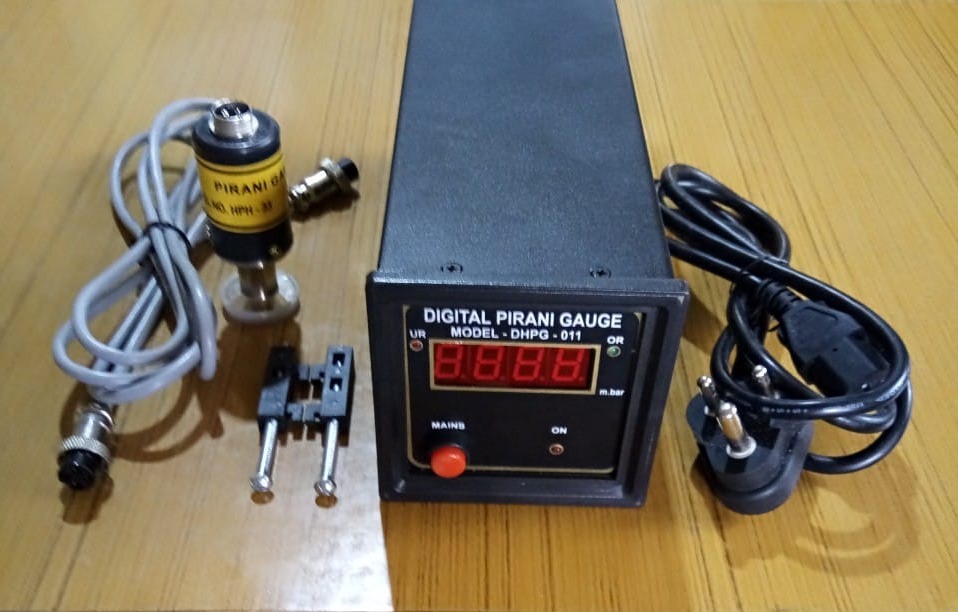

Digital Pirani Vaccum Gauge helps the user to measure small pressure changes. In a Digital Pirani Vacuum Gauge, nickel and tungsten wires are used as filament. Nickel Wire does not only have higher sensitivity but also possess other advantages. The Digital Pirani Vacuum Gauge works on the theory that, when the wires heats to an optimum temperature to portray the sensitivity in the environment. The Digital Pirani Vacuum Gauge is used to measure the discrepancy in temperature.
Features :
Measurement range 0.001 to 1000 mbar
Easy “ATM” and “0” adjustment on the signal conditioner PCB
Space saving rugged design- 1/8 DIN console
Mounts in any orientation
Brass body measuring cell with metal-sealed feed the rough
Universal Power Supply
Integrated Set Point Adjustment and Relay Output
Easy To Read 4 Digit Backlit Display
Point Controller With 2 Relays (select mod el DPRG- 2GH-SP) (Illustrated model: DPRG-2GH-SP )
Applications :
Controlling high vacuum systems
Fore vacuum pressure monitoring
Safety circuits in vacuum systems
General vacuum measurement & control in the fine and rough vacuum range.
