Dinesh High Vacuum Engineering (DHVE) In research laboratories, analytical facilities, and specialized clean manufacturing, the demand for a clean, quiet, and vibration-free vacuum is paramount. The solution lies in the meticulously engineered Dry Scroll Vacuum Pump. Operating completely without oil in the pumping chamber, this technology delivers the reliability and purity required for sensitive processes while maintaining an industry-leading low noise profile. Dinesh High Vacuum Engineering (DHVE) presents a range of compact, high-performance Dry Scroll Pumps—the ideal fore-vacuum (backing) pump for high vacuum systems and a superb standalone pump for medium vacuum applications. I. ⚙️ The Scroll Mechanism: Clean Compression in Action The Dry Scroll Pump is a type of positive displacement pump that utilizes a unique, elegant geometry to trap and compress gas. Its fundamental advantage is the oil-free operation achieved through the precise, non-contact movement of its key components. The Working Principle: Orbiting and Fixed Scrolls Fixed and Orbiting Scrolls: The core mechanism consists of two involute spiral-shaped scrolls: one is fixed (stationary) to the pump casing, and the other, the orbiting scroll (movable scroll), is driven by a motor to move in a tight, eccentric orbit. Gas Trapping and Compression: As the orbiting scroll sweeps through its cycle, it creates crescent-shaped gas pockets between the two scrolls. Gas enters at the inlet port on the outermost ring of the scrolls. The orbiting motion traps the gas and transports it progressively toward the center of the spiral assembly. As the gas moves inward, the volume of the crescent-shaped chambers continuously decreases, leading to compression. Exhaust: The highly compressed gas is finally discharged through a valve located at the center of the fixed scroll assembly to the atmosphere or a capture system. The Role of Tip Seals While the main scroll bodies do not physically touch (maintaining the dry compression volume), the tip seals—often made of high-performance polymer like PTFE—are critical for minimizing gas leakage back towards the inlet, ensuring a deep ultimate vacuum. DHVE selects only high-durability, low-wear materials for its tip seals to maximize pump lifespan and minimize maintenance needs. II. 🌟 Key Advantages of DHVE Dry Scroll Pumps The design benefits of the dry scroll pump translate directly into practical operational advantages for high-purity environments: 100% Oil-Free Vacuum: Eliminates the risk of hydrocarbon back-streaming or oil vapor contamination, which is critical for analytical and semiconductor applications. Ultra-Quiet and Low Vibration: Operating typically at below 55 dB(A) (often lower in standby modes), these pumps are ideal for laboratory benches, cleanrooms, and integrated analytical systems (Mass Spectrometry, Electron Microscopy) where minimal noise and vibration are essential. Compact and Lightweight Design: Their streamlined structure makes them easy to integrate into complex systems, cabinets, and portable vacuum units. Excellent Ultimate Vacuum: Capable of consistently achieving vacuum levels down to 10^{-2} to 10^{-3} mbar, making them suitable as a standalone pump for medium vacuum or as the perfect backing pump for Turbomolecular Pumps. Low Maintenance Requirements: With no oil to monitor or change, maintenance is dramatically simplified, largely limited to periodic tip seal replacement, resulting in higher system uptime. III. The DHVE Commitment to Clean Vacuum Dinesh High Vacuum Engineering is committed to providing robust, oil-free vacuum solutions that increase your efficiency and ensure process purity. Our Dry Scroll Pumps are designed for long service life, low energy consumption, and maximum reliability, reducing your total cost of ownership. ➡️ Upgrade your sensitive applications with DHVE's quiet, clean Dry Scroll technology. Contact Dinesh High Vacuum Engineering today for detailed specifications and expert consultation!

For rugged industrial applications requiring dependable performance in the rough to medium vacuum range (typically 10^{-1} to 10^3 mbar), the Piston Vacuum Pump remains a foundational technology. Known for its robust construction, deep vacuum capabilities for its class, and resilience in demanding environments, the reciprocating piston pump is a true industrial workhorse. Dinesh High Vacuum Engineering (DHVE) offers a comprehensive range of piston vacuum pumps, engineered to deliver high volumetric efficiency and sustained performance across diverse applications, from filtration to material handling. I. ⚙️ Principle of Operation: Positive Displacement with Precision The Piston Vacuum Pump belongs to the positive displacement family, utilizing a simple yet highly effective mechanical action to evacuate gases. The Reciprocating Mechanism Cylinder and Piston: The core of the pump consists of a cylinder in which a piston moves reciprocally (back and forth). This motion is driven by a crank-connecting rod mechanism linked to an electric motor. Intake Stroke (Vacuum Creation): As the piston moves away from the cylinder head (retracts), it increases the volume of the chamber. This expansion causes the pressure inside the cylinder to drop significantly below the pressure of the vessel being evacuated. The pressure differential causes the gas to be drawn into the cylinder through the suction (inlet) valve. Compression Stroke (Exhaust): Once the piston reaches its full retraction point, the suction valve closes, trapping the gas. The piston then moves forward, decreasing the volume and compressing the trapped gas. Discharge: When the pressure of the compressed gas reaches a point slightly above atmospheric pressure, the discharge (exhaust) valve opens, expelling the gas. DHVE offers both single-acting (evacuation occurs on one piston stroke) and double-acting (evacuation occurs on both strokes for a steadier flow) piston pump designs to meet specific flow rate and consistency requirements. II. 🌟 Key Advantages of Piston Vacuum Pumps The simple and sturdy mechanical design of the Piston Vacuum Pump offers distinct benefits in many industrial settings: Deep Rough Vacuum Capability: Piston pumps excel at achieving strong vacuum levels in the rough to medium range, often reaching $10^{-1} Pa (10^{-3} mbar) in multi-stage designs, making them highly efficient for batch processes. Rugged Durability: Constructed from durable materials like cast iron and specialized alloys, these pumps are built to withstand continuous, heavy-duty operation and maintain performance even in harsh, dusty, or humid industrial environments. High Volumetric Efficiency: Due to their robust seals and positive displacement nature, they maintain high pumping speeds across a wide range of operating pressures. Ease of Service: With a relatively simple and accessible mechanical layout, piston pumps are generally easy to maintain and service, leading to reduced downtime and lower long-term repair costs. III. DHVE Focus: Oil-Lubricated vs. Oil-Free Piston Pumps Piston pump technology comes in two main variants, each suited for different priorities: Oil-Lubricated Piston Pumps (DHVE Industrial Models): Features: Utilize oil to cool and lubricate the piston, cylinder walls, and valves, while also improving the seal for a deeper ultimate vacuum. They often include a Gas Ballast feature to prevent water vapor condensation. Ideal For: High-capacity industrial applications where maximum vacuum depth and durability are prioritized over absolute cleanliness (e.g., vacuum impregnation, drying). Oil-Free Piston Pumps (DHVE Laboratory Models): Features: Rely on specialized composite piston rings and cylinder materials to operate without oil. Ideal For: Small-scale, portable, or laboratory applications (e.g., suction, small-chamber evacuation) where the 100% oil-free discharge is critical, despite sacrificing some ultimate vacuum depth compared to lubricated models. Trust Dinesh High Vacuum Engineering for Industrial Vacuum When you choose a Piston Vacuum Pump from Dinesh High Vacuum Engineering (DHVE), you are selecting a solution backed by years of expertise in vacuum technology. Our piston pumps are designed for maximum efficiency, long operational life, and minimal need for servicing, offering you the lowest TCO in industrial rough vacuum. ➡️ Contact Dinesh High Vacuum Engineering today to consult with our experts on selecting the optimal Piston Vacuum Pump model and configuration for your heavy-duty industrial vacuum needs!

Liquid Ring Vacuum Pumps In the chemical, pharmaceutical, power, and food industries, vacuum processes often involve high volumes of condensable vapors, wet gases, or corrosive media. These challenging environments can quickly degrade and destroy traditional dry or oil-sealed pumps. The solution is the exceptionally robust and highly tolerant Liquid Ring Vacuum Pump (LRVP). Dinesh High Vacuum Engineering (DHVE) specializes in LRVPs, leveraging the unique properties of a rotating liquid seal to create a vacuum while simultaneously condensing vapors and scrubbing particulates. The result is a simple, durable, and highly reliable pump that is a cornerstone of process vacuum technology globally. I. ⚙️ The Liquid Ring Principle: Sealing with Fluid The Liquid Ring Vacuum Pump is a type of positive displacement pump that uses an internal sealing liquid (typically water, but often process-compatible solvents or oils) as the compressing element. The Simple, Robust Mechanism Eccentric Impeller: The pump features a multi-bladed impeller mounted eccentrically (off-center) within a cylindrical pump casing. The Liquid Ring: As the impeller rotates, the sealing liquid is thrown outward by centrifugal force, forming a rotating, concentric ring along the inner wall of the casing. This rotating liquid ring is the 'piston' that creates the vacuum. Gas Trapping and Compression: Because the impeller is mounted eccentrically, the space between the impeller blades and the inner surface of the liquid ring continually changes volume: Suction: As the impeller rotates away from the casing center, the chambers between the blades and the liquid ring increase in volume, drawing process gas through the inlet port. Compression: As rotation continues, the liquid ring moves inward toward the impeller hub, reducing the volume of the trapped gas chambers and compressing the gas (isothermal compression). Discharge: The compressed gas, along with a portion of the sealing liquid, is expelled through the discharge port. An external separator system captures the liquid for cooling and potential recirculation (partial or full recovery systems). II. 🌟 Superior Advantages of DHVE Liquid Ring Pumps The unique use of a liquid seal provides a distinct set of operational benefits that make the LRVP essential for difficult industrial duties: Exceptional Contaminant and Vapor Handling: The ability to handle high liquid carryover, condensable vapors, and even soft solids without damage is the defining advantage. The sealing liquid washes the pump's internals, preventing fouling and corrosion. Isothermal Compression: The continuous presence of cool sealing liquid absorbs the heat generated during gas compression. This results in an isothermal (constant temperature) process, which is safer for handling heat-sensitive and potentially flammable gases. Rugged Reliability & Durability: With only one moving part—the impeller—and no metal-to-metal contact between the impeller and the casing, the DHVE LRVP experiences minimal wear. This translates to exceptional operational uptime and significantly lower maintenance costs. Versatility in Sealing Fluids: The sealing liquid is often chosen to be compatible with the process gas. DHVE can configure systems to use water, mineral oil, or specific organic solvents, allowing the LRVP to be used for gas scrubbing and recovery simultaneously. Single- and Two-Stage Options: DHVE offers both single-stage pumps (for rough vacuum, down to approx. 35 mbar) and two-stage pumps (for deeper vacuum, typically down to 25 mbar), providing tailored performance for your specific pressure requirements. III. Designing Your DHVE LRVP System Selecting the correct LRVP system goes beyond just the pump. Dinesh High Vacuum Engineering provides complete systems that include: Material Construction: Pumps are available in Cast Iron (CI), Stainless Steel (SS 304/316), and specialized alloys to ensure compatibility with highly corrosive media. Seal Liquid Management: Choosing between Once-Through (single-pass), Partial Recirculation, or Full Recirculation (Closed-Loop) systems is vital for water conservation, heat dissipation, and environmental compliance. DHVE designs recirculation systems with heat exchangers and liquid separators for maximum efficiency. Performance Range: Single-stage pumps are ideal for applications near the saturation point of the sealing liquid, while two-stage systems offer better performance at deeper vacuum levels. Partner with Dinesh High Vacuum Engineering for Industrial Process Vacuum The Liquid Ring Vacuum Pump is the most reliable choice when facing dirty, wet, or corrosive process streams. Trust Dinesh High Vacuum Engineering (DHVE) to supply an expertly designed system that guarantees longevity, safety, and consistent performance, minimizing your environmental impact and maintenance budget. ➡️ Contact Dinesh High Vacuum Engineering today to configure a high-durability Liquid Ring Vacuum Pump system tailored precisely to your industrial process environment!

For applications that demand incredibly high pumping speeds and large volumetric throughput in the medium to rough vacuum range (10^{-3} to 10 mbar), the Roots Blower Vacuum Pump (also known as a Roots booster or mechanical booster pump) is the unmatched solution. Used primarily as a booster pump in conjunction with a fore-vacuum pump (such as a dry screw or rotary vane pump), the Roots Blower dramatically increases the system’s capacity, particularly at lower pressures. Dinesh High Vacuum Engineering (DHVE) supplies robust Roots Blowers, designed to turbocharge the speed and efficiency of your industrial vacuum system without adding contamination to the process. I. ⚙️ Principle of Operation: Non-Contact Momentum The Roots Blower is a type of positive displacement pump characterized by its high volume, high speed, and oil-free pumping chamber. Unlike many other positive displacement pumps, the Roots Blower does not generate an ultimate vacuum on its own; it must exhaust into a backing pump. The Counter-Rotating Lobes Figure-Eight Lobes (Rotors): The pump consists of two synchronized, counter-rotating, kidney-bean-shaped rotors (often called lobes) housed within a tight casing. Timing Gears: The lobes are driven by external timing gears (located in a separate, oil-lubricated gear chamber) to ensure they spin in perfect synchronization without ever touching each other or the casing walls. This non-contact operation is key to its high speed and dry pumping chamber. Gas Trapping: As the lobes rotate, they trap a volume of gas from the inlet port. This gas is then carried around the periphery of the casing toward the exhaust port. Compression (External): When the trapped volume reaches the exhaust port, it meets the higher-pressure gas flowing out of the backing pump. The resulting backflow causes rapid external compression. The volume is then forced out to the backing pump. The lack of internal compression makes the Roots Blower highly efficient at moving large volumes of gas quickly, which is why it excels at boosting the speed of a backing pump at low pressures where the backing pump's efficiency typically drops off. II. 📈 Why Choose a DHVE Roots Blower? The Booster Advantage The installation of a Roots Blower upstream of a backing pump yields significant operational improvements: Massive Speed Boost: The primary advantage is the dramatic increase in pumping speed (volumetric flow rate), especially in the 10^{-3} to $10^0mbar range. A Roots Blower can increase the speed of a system by a factor of 5 to 10. Deep Vacuum Capability: By adding a Roots Blower, the combined system can reach a significantly lower ultimate vacuum than the backing pump could achieve alone. Contamination-Free Pumping: Since the rotors operate without contact and the pumping chamber is entirely separated from the timing gears, the process gas remains 100% oil-free, even if an oil-sealed pump is used as the backing stage. High Pumping Efficiency: The Roots Blower maintains high volumetric efficiency over a broad pressure range, leading to faster pump-down times for large chambers and industrial systems. Robustness: The non-contact design means minimal mechanical wear, resulting in high reliability and long service life, essential for continuous industrial operation. III. Designing Your DHVE Roots System: The Differential Pressure Challenge Properly integrating a Roots Blower requires careful consideration of the compression ratio —the ratio of the discharge pressure to the inlet pressure Limitation: Roots Blowers have a limit on the maximum safe compression ratio (typically around 10 to 20:1). If this limit is exceeded, the extreme pressure differential causes excessive heat buildup that can lead to lobe distortion and seizure. DHVE Solutions: To manage this, Dinesh High Vacuum Engineering often employs two key strategies: Multiple Stages: Linking two or more Roots Blowers in series, with the last stage exhausting into the backing pump, to increase the overall compression ratio without overloading any single stage. Bypass/Relief Valves: Integrating an automatic bypass valve that opens when the pressure differential becomes too high, recirculating gas from the discharge back to the inlet until the pressure equalizes. Maximize Your System Speed with DHVE Boosters For industrial processes where speed and volume are critical, there is no substitute for the performance of a Roots Blower system. By integrating a Dinesh High Vacuum Engineering Roots Booster with your existing backing pump, you will dramatically reduce cycle times, increase productivity, and achieve a deeper ultimate vacuum. ➡️ Supercharge your vacuum system today. Contact Dinesh High Vacuum Engineering to design a custom Roots Blower setup tailored to your specific flow rate and pressure requirements!

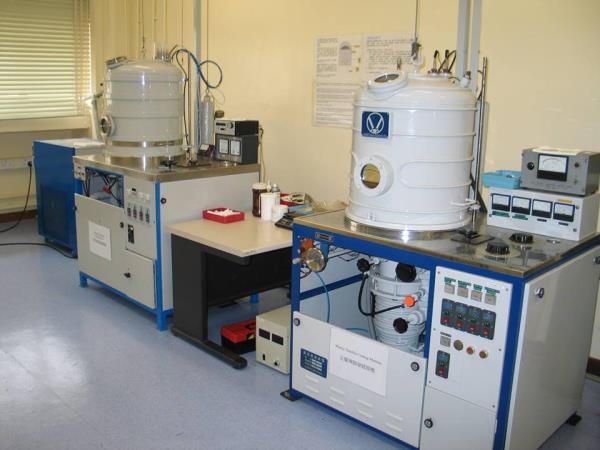

Vacuum Coating plant Vacuum Coating plant by Dinesh High Vacuum Engineering acclaims great demands among vast number of industries due to its high proficiency and output and the quality of utmost standards. Our range of Vacuum Coating products is equipped with high production output for Decorative mirrors, Auto light reflectors, Cold mirrors, Rear View mirrors and Glass Bangles.

PERFORMANCE YOU CAN TRUST ON The DHVE series is the ultimate range of best oil sealed rotary vane pumps- The result of more than 35 years’ experience and a clean sheet design programmer, these rugged vacuum pumps offer an excellent ultimate vacuum with good pumping speeds as well as superior vapor handling capabilities and quiet operation. The firm offers Rotary vane vacuum pumps are designed with decade of experience for excellent performance and modest maintenance. They are widely used for Laboratory distillation, Screen Printing, Bottle Filling Pharmaceuticals, Food beverages industries with proven performance. These pumps are available in various models such as V-Belt Driven, Direct Driven and Flange type. Specialist in compact design is its success for application in Offset Printing, Cartooning, Powder filling, Labelling, Packaging Industries. Versatile vacuum pumps with unique features successfully proved on Semi / High speed automatic Capsule filling machines / Filtration / transferring / Holding / Conveying & Packaging machines. Applications- You can be assured DHVE has the application expertise and the pumps or integrated system solution to meet your needs. Mass spectrometry- • GCMS, LCMS, ICPMS, MALDI, RGA, surface science, leak detectors High energy physics- • Beam lines, accelerators, mobile pump carts, turbomolecular pump backing, laser evacuation Research and development- • Chamber evacuation, coating systems, turbomolecular pump backing Industrial- • Glove boxes, coating systems, freeze drying, gas bottle filling/emptying, refrigeration system manufacture, degassing/curing (oil, epoxy resin) Chemical- • Gel dryers, glove boxes, rotary evaporators, centrifuges, distillation/extraction/filtration

A high voltage is applied and the gas is introduced. The positive argon ions go through an acceleration process on the negative cathode and then expel the atoms of the metal plate (evaporating material), which then fall onto the substrates already in the chamber and condense the desired metal coating onto the substrate. The impact of the atoms on the evaporating material produces “Sputtering”, as a result of the acceleration given by the succeeded particles. Unlike many other vacuum deposition techniques, there is no fusion of material, therefore all the metals and alloys can be deposited with high efficiency and control. If a reactive gas such as nitrogen or acetylene is introduced into the chamber together with the process gas, the nitride which reacts to the carbide, develops on the substrates. Different cathodes made of different materials can be inserted in a vacuum coating system to produce multiple layer systems. It is also possible to modify the combination of the single layers by varying the combination of the reactive gases.

Vacuum Chamber are Precise instruments for experimentation, powerful tools for productivity DHVE Vacuum Chambers provide the foundation for a broad range of systems, serving uses from scientific experimentation to industrial production. DHVE ’s vertically integrated engineering sales, design and fabrication method positions the company to respond to stock order and custom fabrication requirements promptly and cost effectively. Component and Package leak testing, degassing, vacuum process methods, altitude flight and deep space simulations; DHVE Vacuum Chambers serve as powerful and well crafted tools in countless sciences and industries. For more info visit us at www.vaccumpumpmanufacturer.com

We have established ourselves as a renowned manufacturer, trader and supplier of Vacuum Chambers. These vacuum chambers are used in labs, studio and many more places. Our offered vacuum chambers are tested on numerous parameters under the direction of our quality experts in order to deliver a flawless range. We provide these vacuum chambers in different specifications as per the need of customers. Features: Application specific design Smooth performance Low maintenance cost Specifications: Voltage: 380V Humid. range: 10 ~ 98 percent R.H. Other Information: Item Code: VC-001
