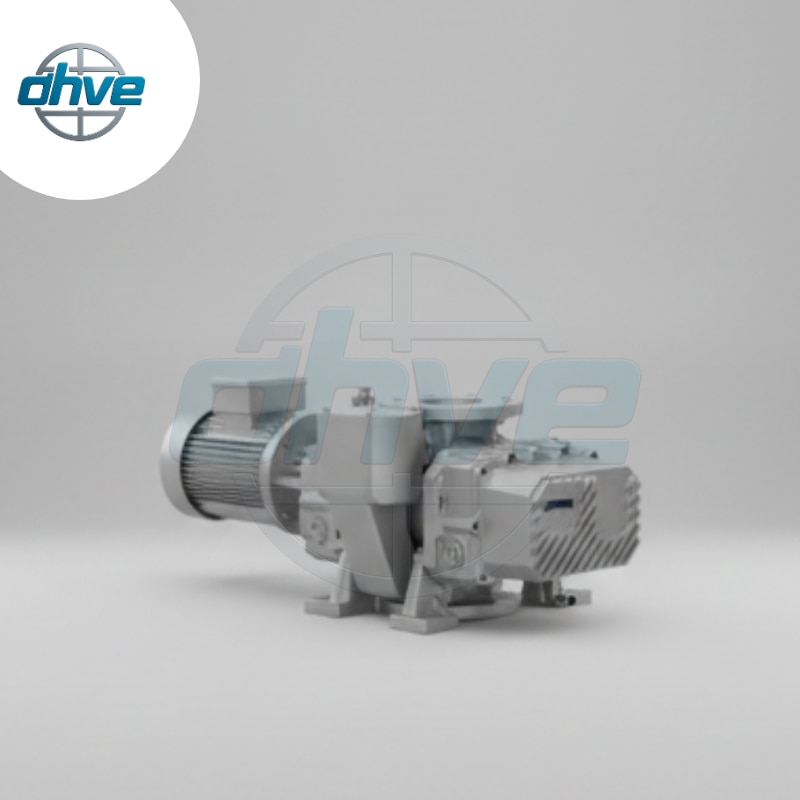

Roots Blower Vacuum Pump

Description

For applications that demand incredibly high pumping speeds and large volumetric throughput in the medium to rough vacuum range (10^{-3} to 10 mbar), the Roots Blower Vacuum Pump (also known as a Roots booster or mechanical booster pump) is the unmatched solution. Used primarily as a booster pump in conjunction with a fore-vacuum pump (such as a dry screw or rotary vane pump), the Roots Blower dramatically increases the system’s capacity, particularly at lower pressures. Dinesh High Vacuum Engineering (DHVE) supplies robust Roots Blowers, designed to turbocharge the speed and efficiency of your industrial vacuum system without adding contamination to the process. I. ⚙️ Principle of Operation: Non-Contact Momentum The Roots Blower is a type of positive displacement pump characterized by its high volume, high speed, and oil-free pumping chamber. Unlike many other positive displacement pumps, the Roots Blower does not generate an ultimate vacuum on its own; it must exhaust into a backing pump. The Counter-Rotating Lobes Figure-Eight Lobes (Rotors): The pump consists of two synchronized, counter-rotating, kidney-bean-shaped rotors (often called lobes) housed within a tight casing. Timing Gears: The lobes are driven by external timing gears (located in a separate, oil-lubricated gear chamber) to ensure they spin in perfect synchronization without ever touching each other or the casing walls. This non-contact operation is key to its high speed and dry pumping chamber. Gas Trapping: As the lobes rotate, they trap a volume of gas from the inlet port. This gas is then carried around the periphery of the casing toward the exhaust port. Compression (External): When the trapped volume reaches the exhaust port, it meets the higher-pressure gas flowing out of the backing pump. The resulting backflow causes rapid external compression. The volume is then forced out to the backing pump. The lack of internal compression makes the Roots Blower highly efficient at moving large volumes of gas quickly, which is why it excels at boosting the speed of a backing pump at low pressures where the backing pump's efficiency typically drops off. II. 📈 Why Choose a DHVE Roots Blower? The Booster Advantage The installation of a Roots Blower upstream of a backing pump yields significant operational improvements: Massive Speed Boost: The primary advantage is the dramatic increase in pumping speed (volumetric flow rate), especially in the 10^{-3} to $10^0mbar range. A Roots Blower can increase the speed of a system by a factor of 5 to 10. Deep Vacuum Capability: By adding a Roots Blower, the combined system can reach a significantly lower ultimate vacuum than the backing pump could achieve alone. Contamination-Free Pumping: Since the rotors operate without contact and the pumping chamber is entirely separated from the timing gears, the process gas remains 100% oil-free, even if an oil-sealed pump is used as the backing stage. High Pumping Efficiency: The Roots Blower maintains high volumetric efficiency over a broad pressure range, leading to faster pump-down times for large chambers and industrial systems. Robustness: The non-contact design means minimal mechanical wear, resulting in high reliability and long service life, essential for continuous industrial operation. III. Designing Your DHVE Roots System: The Differential Pressure Challenge Properly integrating a Roots Blower requires careful consideration of the compression ratio —the ratio of the discharge pressure to the inlet pressure Limitation: Roots Blowers have a limit on the maximum safe compression ratio (typically around 10 to 20:1). If this limit is exceeded, the extreme pressure differential causes excessive heat buildup that can lead to lobe distortion and seizure. DHVE Solutions: To manage this, Dinesh High Vacuum Engineering often employs two key strategies: Multiple Stages: Linking two or more Roots Blowers in series, with the last stage exhausting into the backing pump, to increase the overall compression ratio without overloading any single stage. Bypass/Relief Valves: Integrating an automatic bypass valve that opens when the pressure differential becomes too high, recirculating gas from the discharge back to the inlet until the pressure equalizes. Maximize Your System Speed with DHVE Boosters For industrial processes where speed and volume are critical, there is no substitute for the performance of a Roots Blower system. By integrating a Dinesh High Vacuum Engineering Roots Booster with your existing backing pump, you will dramatically reduce cycle times, increase productivity, and achieve a deeper ultimate vacuum. ➡️ Supercharge your vacuum system today. Contact Dinesh High Vacuum Engineering to design a custom Roots Blower setup tailored to your specific flow rate and pressure requirements!
