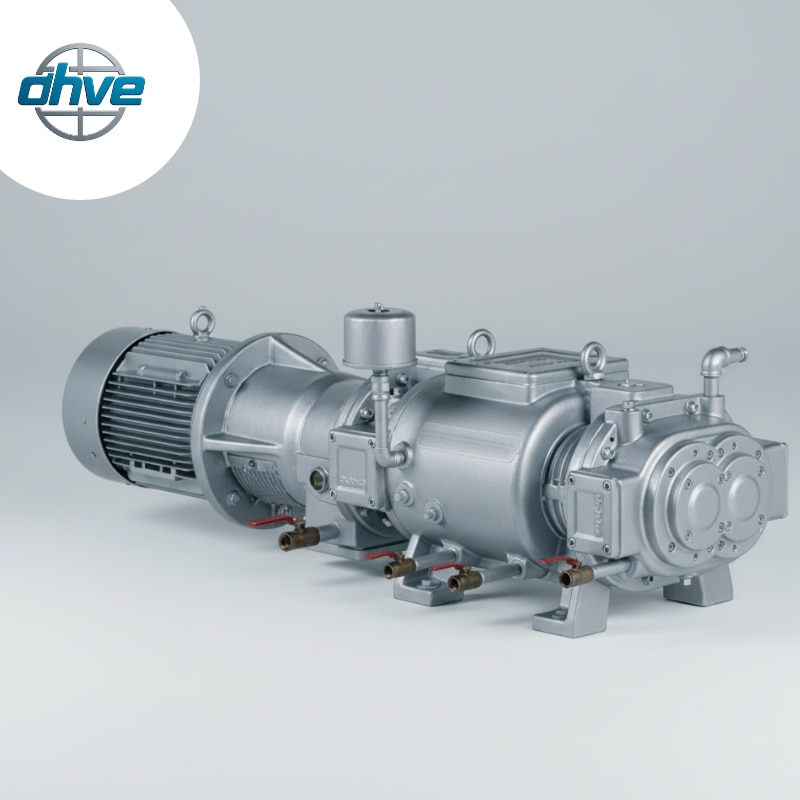

Dry Screw Vacuum Pump

Description

In today's high-stakes manufacturing and processing environments, achieving a truly oil-free, high-efficiency vacuum is non-negotiable. Traditional pumps often introduce the risk of contamination, high maintenance burdens, and poor energy performance. Dinesh High Vacuum Engineering (DHVE) is proud to present its next-generation line of Dry Screw Vacuum Pumps—the definitive solution for applications demanding purity, precision, and the lowest possible cost of ownership. This detailed guide explores the superior technology, advanced features, and material science that make DHVE dry screw pumps the industry's gold standard. ⚙️ Technical Mastery: The Science Behind DHVE Dry Screw Pumps A dry screw pump is a masterpiece of precision engineering. Unlike wet pumps, which rely on lubricating fluids, the DHVE dry screw mechanism achieves its vacuum purely through mechanical action in an oil-free environment. The Core Mechanism: Non-Contact Compression The heart of the pump consists of two parallel, precision-machined helical screw rotors that rotate in perfect synchronization. Axial Gas Transport: As the rotors spin in opposite directions, the threads intermesh without making physical contact. This action traps process gas at the inlet and progressively transports it along the axis of the screws toward the exhaust. Internal Compression (Variable Pitch): DHVE models utilize a variable pitch screw design. This advanced geometry features a decreasing pitch (thread spacing) toward the discharge end. This progressive reduction in volume creates internal compression, which is a crucial feature: It minimizes the pressure difference between the last compression chamber and the exhaust, significantly reducing backflow leakage (or 'slip losses'). This results in higher volumetric efficiency and lower power consumption compared to constant-pitch designs. Gap Sealing: The vacuum is maintained by extremely tight, micron-level clearances between the rotors and the casing, and between the rotors themselves. This non-contact principle eliminates wear, ensures process purity, and is the foundation for the pump’s exceptional reliability. 🛡️ Corrosion & Contaminant Handling: Built for Harsh Environments The dry screw design inherently handles condensable vapors and particulates better than oil-sealed pumps. However, for the aggressive chemical and pharmaceutical sectors, DHVE offers pumps built with specialized material science to ensure longevity and zero failure. Advanced Materials for Chemical Resistance For applications involving highly corrosive gases like concentrated acids, solvents, and chlorides, Dinesh High Vacuum Engineering utilizes premium materials and coatings: Stainless Steel Rotors (316L and Duplex): For mild to moderately corrosive process streams, 316L offers excellent general resistance. For extreme environments, Duplex stainless steel (UNS S32205 / S32750) is utilized, providing superior resistance to pitting, crevice corrosion, and stress cracking, especially against chlorides and organic acids. Anti-Corrosion Coatings: The internal surfaces of the pump casing and rotors are often protected with thick, robust coatings such as Nickel Plating (ENP) or PEEK (Polyether Ether Ketone).14 These barrier layers prevent direct contact between the metal substrate and the aggressive process media. Gas Ballast System: Every DHVE dry screw pump is equipped with a gas ballast port. Introducing a small, controlled amount of inert gas (like Nitrogen) heats the pump and lowers the partial pressure of condensable vapors, ensuring they remain in the gaseous state and are safely expelled, preventing liquid condensation and subsequent corrosion. 🌐 Applications & Industrial Purity The unique combination of oil-free operation, VSD energy efficiency, and chemical resistance makes the DHVE Dry Screw Vacuum Pump the definitive choice across critical industries: Pharmaceuticals & Lyophilization: Guarantees absolute product purity, essential for drug safety and solvent recovery processes like freeze drying. Semiconductor & Electronics: Meets the stringent demands for ultra-clean vacuum required in PVD/CVD coating, etching, and load lock chambers. Chemical Processing: Reliable performance in challenging duties such as vacuum distillation, solvent stripping, and reactor service, backed by our corrosion-resistant material options. Ready to Optimize Your Vacuum Process? The decision to invest in a Dry Screw Vacuum Pump is an investment in process reliability, energy efficiency, and product purity. By choosing Dinesh High Vacuum Engineering (DHVE), you gain access to cutting-edge technology, expert application support, and a pumping solution engineered for decades of low-maintenance operation. ➡️ Contact Dinesh High Vacuum Engineering today to speak with one of our vacuum specialists and receive a quote tailored to your exact industrial requirements!
